Ashford Brooklyn 4-Shaft Loom 40cm (16")

Transitioning from Rigid Heddle to Table Loom Weaving

We are delighted to announce the launch of Ashford's latest multi-shaft table loom - the Brooklyn 4-Shaft Loom!

The Brooklyn loom was created as a cost-effective stepping stone for rigid heddle weavers who are eager to advance their weaving techniques and discover the fascinating world of multi-shaft weaving. The Brooklyn loom is the best loom for use in a classroom. It helps make multi-shaft weaving become simple and straightforward.

Get to Know the Ashford Brooklyn 4-Shaft Loom

The Brooklyn Four Shaft Loom gives weavers of all levels the features they need to create stunning fabrics.


  • ‍Large beam-to-beam depth of 73cm (28 1⁄2") the same as all our table looms.
  • Smooth, quiet overhead beater with auto bounce-back for even beating at the fell.
  • A generous rising shed.

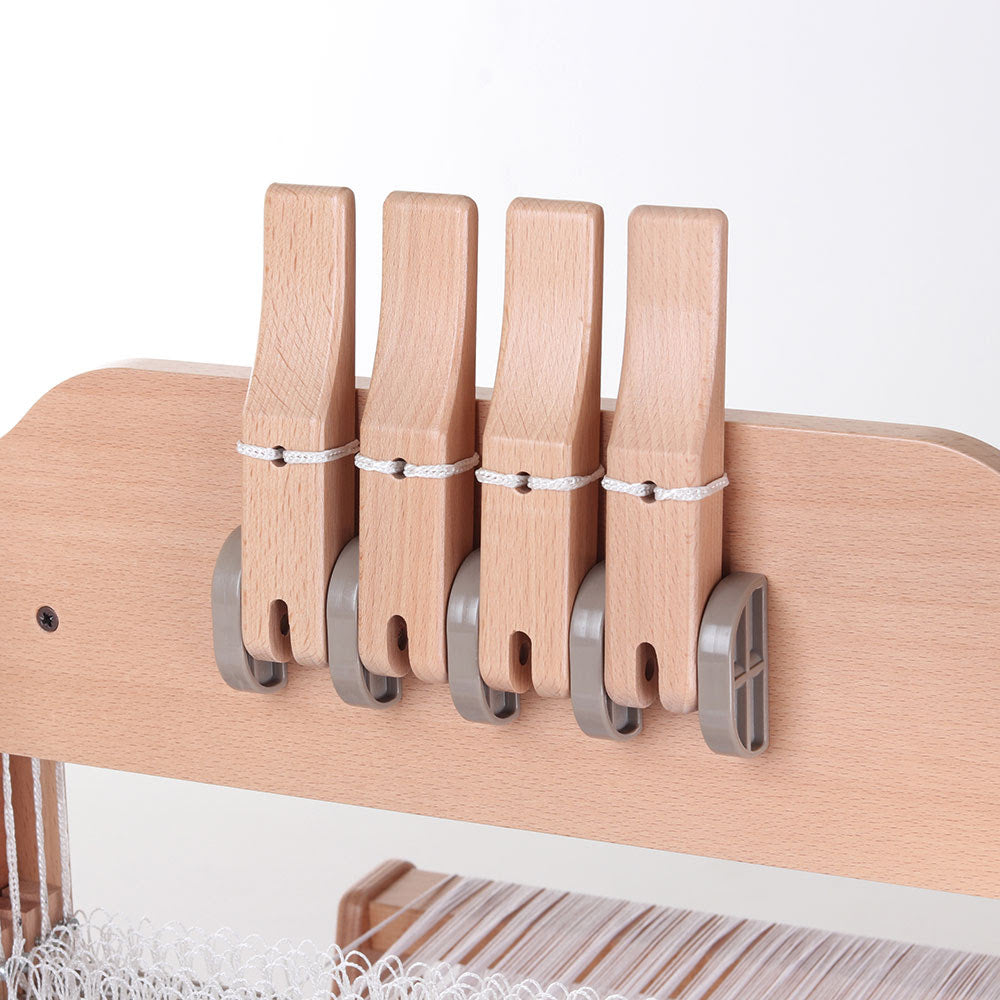

  • Smooth action levers for light and easy pattern changes.
  • Stainless steel 10dpi reed.
  • Texsolv cord lifts shafts evenly from both sides through frictionless nylon loom cord guides and allows easy shaft height adjustment.
  • The beater will accept over-width reeds and can be locked for warping.
  • Strong 40 teeth nylon ratchets, handles and clicker pawls allow comfortable warp tension and control.
  • Rubber feet to keep your loom from moving when weaving.
  • The loom is made using strong beech hardwood with ply sides that combine to make the Brooklyn Four Shaft Loom robust, light and easy to move.
  • Quick and easy to assemble.
  • Choose to leave natural or finish with Ashford Finishing Wax Polish, oil, lacquer or decorate to your preference.
  • Weight: 7.5kg (16 1⁄2lbs) gross 6.5kg nett (14 1⁄2lbs)


  • 2 46cm stick shuttles
  • 5 cross/warp sticks
  • 10 cardboard warp-separating sticks
  • A threading hook
  • A full step-by-step colour assembly
  • A warping and weaving instruction booklet
  • A total of 320 Texsolv 22cm (8 1⁄2") heddles, giving 80 heddles per shaft, enough for a balanced 20epi weave.
